Accuride 7432 Series Light Duty Full Extension Slide with Rail Mounting and Progressive Movement - 12" - Zinc - C7432-12D

Product Description
A first-choice in motion hardware. Complete with full-extension and premium progressive movement, the 7432 model guarantees easy-access and extra-smooth, quiet operation for file, desk, and storage drawers in an array of settings and spaces.
- Supports loads up to 100 lbs.
- For drawers up to 24” wide
- For additional technical information see below
Backed by AWI & BHMA certified, this movement solution holds a seal of approval for wood crafted designs--providing a hold-in detent for dependability and security along with a patented Cam Drawer Adjust for precise vertical adjustment.

- Configuration: Side-Mount
- Max Drawer Load: 100 lbs.
- Max Drawer Width: 24 in.
- Level of Travel: Full extension

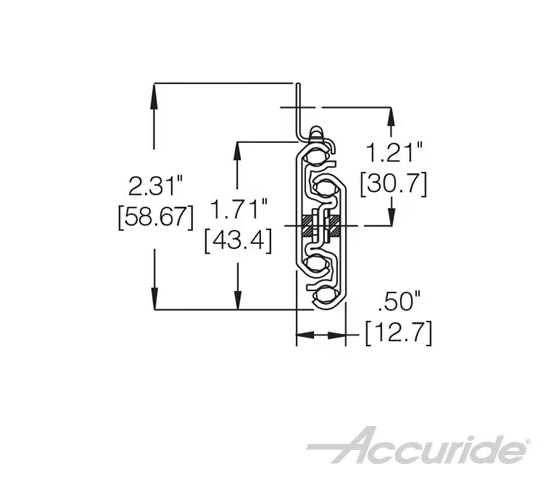

- Side-Space: .50 in.
- AWI and BHMA certified
- Method of Disconnect: Rail mount disconnect
- Steel ball bearings
- Architectural specifications: drawers 24” wide or less, ball bearing slide with rail mount, full extension, hold-in detent, 100 lbs. load rating, progressive movement

- Progressive movement for extra smooth and quiet operation
- Patented Cam Drawer Adjust provides up to 3/16" precise vertical adjustment
- Hold-in detent to prevent drawer roll-out and bounce-back
- 32 mm and traditional hole pattern

Accuride item number: C7432-12D
- Length: 12"
- Finish: Zinc (C)

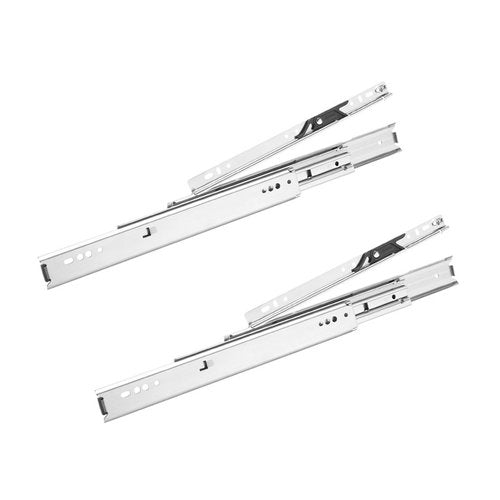

- Sold: Pair (left and right included)
Sku: C7432-12D
Vendor: Accuride
$25.51
