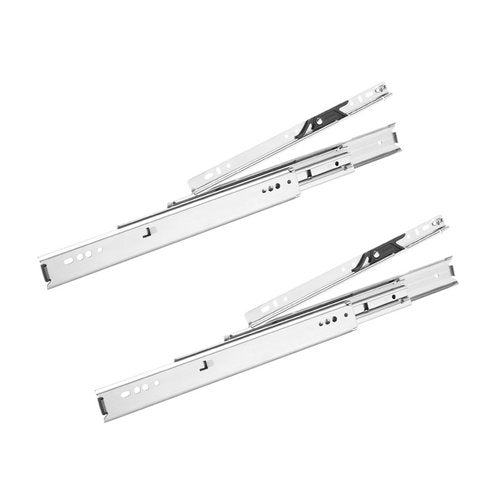

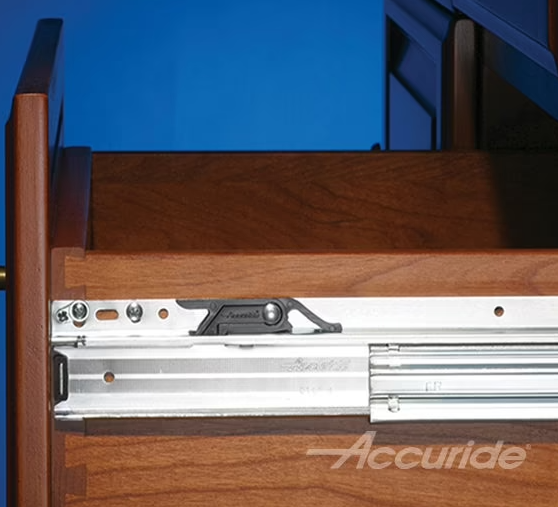

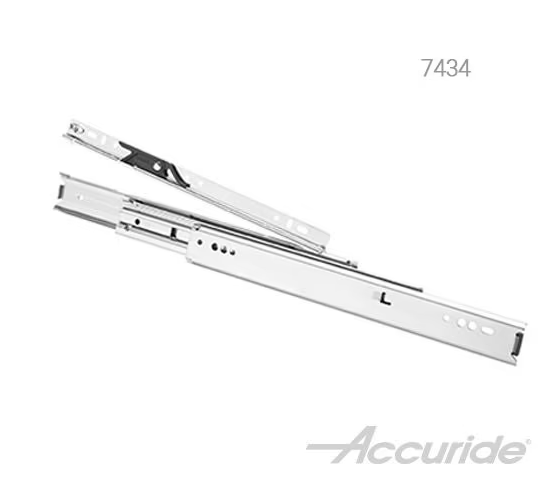

{"id":10969174036,"title":"Accuride 7434 Series Light Duty Over Travel Slide with Rail Mounting and Progressive Movement - 20\" - Zinc - C7434-20D","handle":"accuride-7434-20-side-mount-slide-20-zinc","description":"Premium progressive movement to keep your hardware moving ever-forward and innovative. A champion of extra-smooth and silent operation, the 7434 over-travel slide enhances access to file, desk, and storage drawers around the home, office, or workspace.\u003cbr\u003e\n- Supports loads up to 100 lbs.\u003cbr\u003e\n- For drawers up to 24” wide\u003cbr\u003e\n- For additional technical information see below\u003cbr\u003e\nDesigned with a patented Cam Drawer Adjust, installation remains easy yet exact, while a hold-in detent for the finished design makes for long-term, practical use. The AWI \u0026amp; BHMA certified 7434 model also includes a trusty rail mount disconnect along with over-travel to ensure end users have complete, total access to stored items.\n\n\u003cbr\u003e\u003cbr\u003e\n\n- Configuration: Side-Mount\u003cbr\u003e\n- Max Drawer Load: 100 lbs.\u003cbr\u003e\n- Max Drawer Width: 24 in.\u003cbr\u003e\n- Level of Travel: 1\" over-travel\u003cbr\u003e\n- Side-Space: .50 in.\u003cbr\u003e\n- AWI and BHMA certified\u003cbr\u003e\n- Method of Disconnect: Rail mount disconnect\u003cbr\u003e\n- Steel ball bearings\u003cbr\u003e\n- Architectural specifications: drawers 24” wide or less, ball bearing slide with rail mount, full extension + 1” over-travel, hold-in detent, 100 lbs. load rating, progressive movement\n\n\u003cbr\u003e\u003cbr\u003e\n\n- Progressive movement for extra smooth and quiet operation\u003cbr\u003e\n- Patented Cam Drawer Adjust provides up to 3\/16\" precise vertical adjustment\u003cbr\u003e\n- Hold-in detent to prevent drawer roll-out and bounce-back\u003cbr\u003e\n- 32 mm and traditional hole pattern\n\n\u003cbr\u003e\u003cbr\u003e\n\nAccuride item number: C7434-20D\u003cbr\u003e\n- Length: 20\"\u003cbr\u003e\n- Finish: Zinc (C)\u003cbr\u003e\n- Sold: Pair (left and right included) ","published_at":"2017-06-19T09:41:43-04:00","created_at":"2017-06-19T09:41:43-04:00","vendor":"Accuride","type":"Drawer Slides","tags":["7434","7434 Series","Accuride"],"price":2434,"price_min":2434,"price_max":2434,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":43584075412,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"C7434-20D","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Accuride 7434 Series Light Duty Over Travel Slide with Rail Mounting and Progressive Movement - 20\" - Zinc - C7434-20D","public_title":null,"options":["Default Title"],"price":2434,"weight":2268,"compare_at_price":null,"inventory_quantity":8,"inventory_management":null,"inventory_policy":"deny","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/www.ircabinetsupply.com\/cdn\/shop\/files\/7434-1_d6ffb89e-1b26-43ab-bdb7-d37da4b32b37.jpg?v=1683597887","\/\/www.ircabinetsupply.com\/cdn\/shop\/files\/7434-2_eeeaaec0-42b3-4537-b92c-aeb75c47714b.png?v=1683597886","\/\/www.ircabinetsupply.com\/cdn\/shop\/files\/7434-3_fe0812c0-701d-4c1e-9178-1416b2f8a8ef.png?v=1683597886","\/\/www.ircabinetsupply.com\/cdn\/shop\/files\/7434-4_f5a99a90-c10b-46d8-bbf1-c504c2593df2.png?v=1683597886"],"featured_image":"\/\/www.ircabinetsupply.com\/cdn\/shop\/files\/7434-1_d6ffb89e-1b26-43ab-bdb7-d37da4b32b37.jpg?v=1683597887","options":["Title"],"media":[{"alt":null,"id":21662374887495,"position":1,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/www.ircabinetsupply.com\/cdn\/shop\/files\/7434-1_d6ffb89e-1b26-43ab-bdb7-d37da4b32b37.jpg?v=1683597887"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/www.ircabinetsupply.com\/cdn\/shop\/files\/7434-1_d6ffb89e-1b26-43ab-bdb7-d37da4b32b37.jpg?v=1683597887","width":500},{"alt":null,"id":21662374920263,"position":2,"preview_image":{"aspect_ratio":1.127,"height":496,"width":559,"src":"\/\/www.ircabinetsupply.com\/cdn\/shop\/files\/7434-2_eeeaaec0-42b3-4537-b92c-aeb75c47714b.png?v=1683597886"},"aspect_ratio":1.127,"height":496,"media_type":"image","src":"\/\/www.ircabinetsupply.com\/cdn\/shop\/files\/7434-2_eeeaaec0-42b3-4537-b92c-aeb75c47714b.png?v=1683597886","width":559},{"alt":null,"id":21662374953031,"position":3,"preview_image":{"aspect_ratio":1.128,"height":493,"width":556,"src":"\/\/www.ircabinetsupply.com\/cdn\/shop\/files\/7434-3_fe0812c0-701d-4c1e-9178-1416b2f8a8ef.png?v=1683597886"},"aspect_ratio":1.128,"height":493,"media_type":"image","src":"\/\/www.ircabinetsupply.com\/cdn\/shop\/files\/7434-3_fe0812c0-701d-4c1e-9178-1416b2f8a8ef.png?v=1683597886","width":556},{"alt":null,"id":21662374985799,"position":4,"preview_image":{"aspect_ratio":1.101,"height":507,"width":558,"src":"\/\/www.ircabinetsupply.com\/cdn\/shop\/files\/7434-4_f5a99a90-c10b-46d8-bbf1-c504c2593df2.png?v=1683597886"},"aspect_ratio":1.101,"height":507,"media_type":"image","src":"\/\/www.ircabinetsupply.com\/cdn\/shop\/files\/7434-4_f5a99a90-c10b-46d8-bbf1-c504c2593df2.png?v=1683597886","width":558}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"Premium progressive movement to keep your hardware moving ever-forward and innovative. A champion of extra-smooth and silent operation, the 7434 over-travel slide enhances access to file, desk, and storage drawers around the home, office, or workspace.\u003cbr\u003e\n- Supports loads up to 100 lbs.\u003cbr\u003e\n- For drawers up to 24” wide\u003cbr\u003e\n- For additional technical information see below\u003cbr\u003e\nDesigned with a patented Cam Drawer Adjust, installation remains easy yet exact, while a hold-in detent for the finished design makes for long-term, practical use. The AWI \u0026amp; BHMA certified 7434 model also includes a trusty rail mount disconnect along with over-travel to ensure end users have complete, total access to stored items.\n\n\u003cbr\u003e\u003cbr\u003e\n\n- Configuration: Side-Mount\u003cbr\u003e\n- Max Drawer Load: 100 lbs.\u003cbr\u003e\n- Max Drawer Width: 24 in.\u003cbr\u003e\n- Level of Travel: 1\" over-travel\u003cbr\u003e\n- Side-Space: .50 in.\u003cbr\u003e\n- AWI and BHMA certified\u003cbr\u003e\n- Method of Disconnect: Rail mount disconnect\u003cbr\u003e\n- Steel ball bearings\u003cbr\u003e\n- Architectural specifications: drawers 24” wide or less, ball bearing slide with rail mount, full extension + 1” over-travel, hold-in detent, 100 lbs. load rating, progressive movement\n\n\u003cbr\u003e\u003cbr\u003e\n\n- Progressive movement for extra smooth and quiet operation\u003cbr\u003e\n- Patented Cam Drawer Adjust provides up to 3\/16\" precise vertical adjustment\u003cbr\u003e\n- Hold-in detent to prevent drawer roll-out and bounce-back\u003cbr\u003e\n- 32 mm and traditional hole pattern\n\n\u003cbr\u003e\u003cbr\u003e\n\nAccuride item number: C7434-20D\u003cbr\u003e\n- Length: 20\"\u003cbr\u003e\n- Finish: Zinc (C)\u003cbr\u003e\n- Sold: Pair (left and right included) "}
