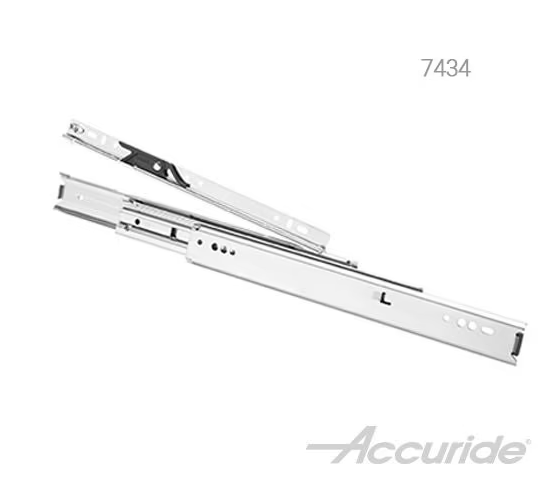

Accuride 7434 Series Light Duty Over Travel Slide with Rail Mounting and Progressive Movement - 22" - Zinc - C7434-22D

Product Description
Premium progressive movement to keep your hardware moving ever-forward and innovative. A champion of extra-smooth and silent operation, the 7434 over-travel slide enhances access to file, desk, and storage drawers around the home, office, or workspace.
- Supports loads up to 100 lbs.
- For drawers up to 24” wide
- For additional technical information see below
Designed with a patented Cam Drawer Adjust, installation remains easy yet exact, while a hold-in detent for the finished design makes for long-term, practical use. The AWI & BHMA certified 7434 model also includes a trusty rail mount disconnect along with over-travel to ensure end users have complete, total access to stored items.

- Configuration: Side-Mount
- Max Drawer Load: 100 lbs.
- Max Drawer Width: 24 in.
- Level of Travel: 1" over-travel
- Side-Space: .50 in.
- AWI and BHMA certified
- Method of Disconnect: Rail mount disconnect
- Steel ball bearings
- Architectural specifications: drawers 24” wide or less, ball bearing slide with rail mount, full extension + 1” over-travel, hold-in detent, 100 lbs. load rating, progressive movement

- Progressive movement for extra smooth and quiet operation
- Patented Cam Drawer Adjust provides up to 3/16" precise vertical adjustment
- Hold-in detent to prevent drawer roll-out and bounce-back
- 32 mm and traditional hole pattern

Accuride item number: C7434-22D
- Length: 22"
- Finish: Zinc (C)

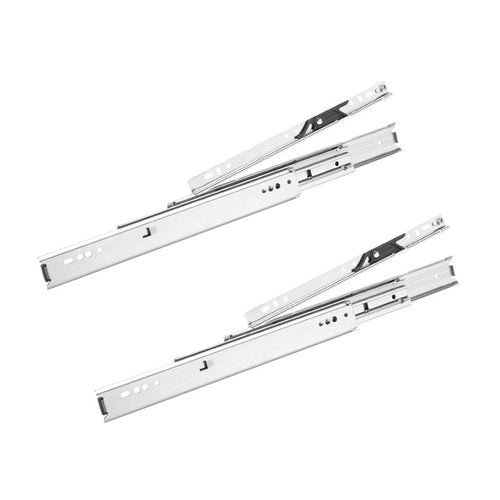

- Sold: Pair (left and right included)
Sku: C7434-22D
Vendor: Accuride
$25.25
