Blum AVENTOS HK top for TIP-ON - Lift Mechanism Set - Power Factor 270-781 - 22K2900T

Product Description

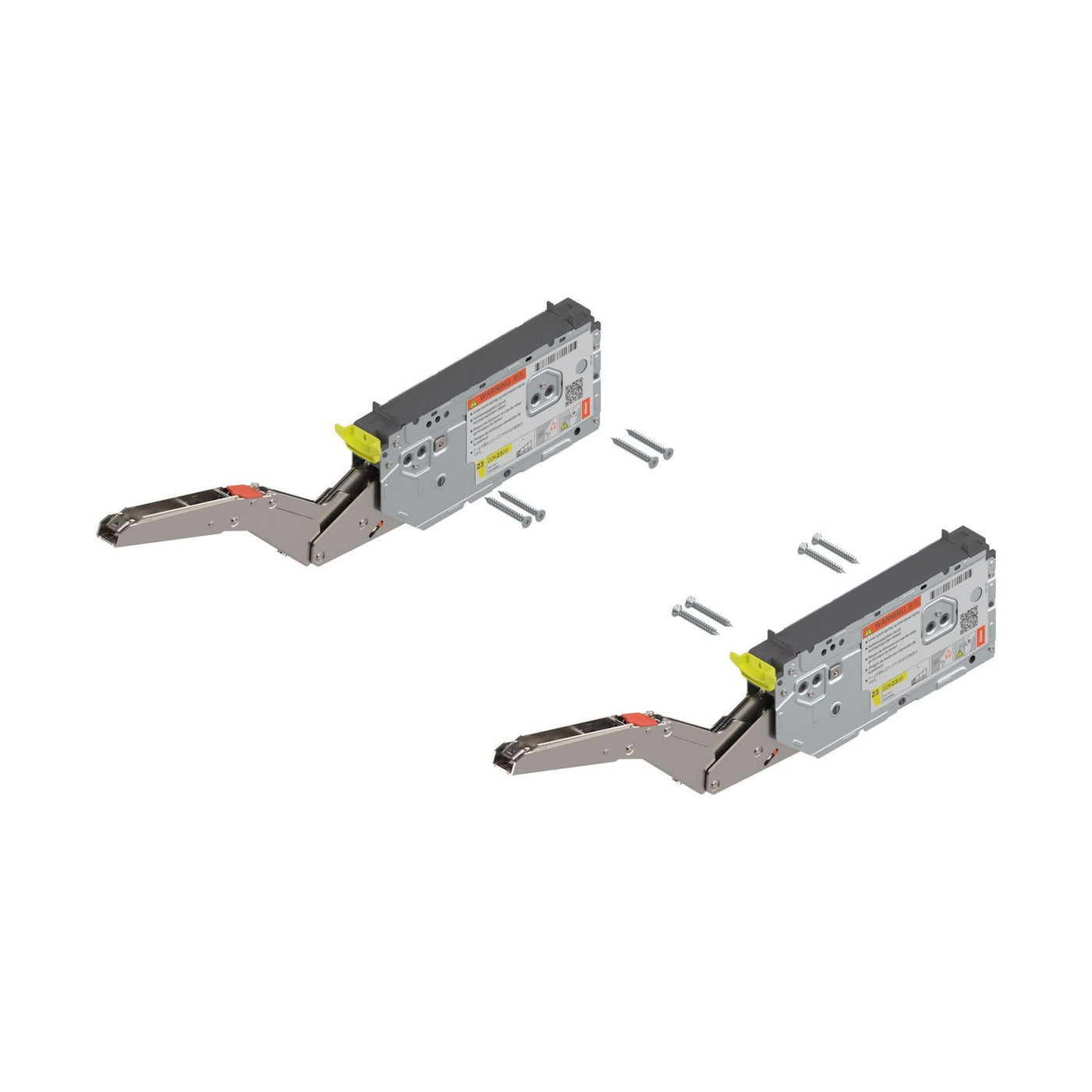

Lift Mechanism Set includes:
- Lift mechanism (qty 2)
- #7 x 35mm (1-3/8") wood screw (qty 8)
- Power factor range: 270-781
- Opening angle: 107°

Power factor = cabinet height (in inches) x door weight (in lbs, including twice the handle weight)

- Self-positioning mechanism with location template eliminates complicated installation
- Integrated opening angle adjustment between 75° and 107°
- Cabinet height from 10" (250mm) to 24" (610mm)
- Cabinet width range 15" (381mm) to 72" (1828mm)
- Interior cabinet depth minimum of 7-3/8" (187mm)
- Optional: TIP-ON for AVENTOS
- If using a third lift mechanism for wider applications (power factor increases by up to 50%), we recommend a trial application

NOTE: For wide cabinets, we recommend an additional lift mechanism be attached to the center panel to prevent the middle of the front from sagging when open.

NOTE:
- Cover sets sold separately
- Door mounting plates sold separately
Sku: 22K2900T
Vendor: Blum
$85.46
