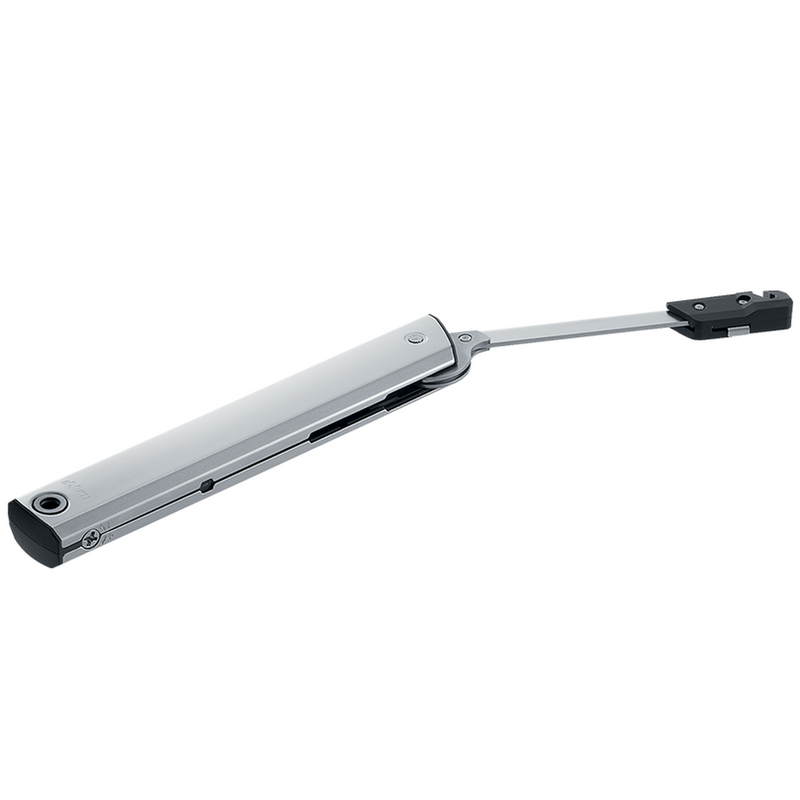

Blum AVENTOS HK-XS - Lift Mechanism - 20K1501

Product Description
Blum AVENTOS HK-XS - Lift Mechanism - 20K1501

- Well suited for small wall cabinets
- Cabinet heights from 9-3/8" (238mm) to 24" (610mm)
- Cabinet widths up to 72" (1828mm)
- Interior depth minimum 5" (127mm)
- Closes silently and effortlessly with:
CLIP to BLUMOTION or
COMPACT BLUMOTION hinges
- Simple, virtually tool-free assembly and easy adjustment
- Symmetrical lift mechanism - can be used on one or both sides
- Designed for use with BLUMOTION hinges

Power factor range (1 lift): 113 - 156
Power factor range (2 lifts): 225 -312

Per Blum the formula for determining the power factor is cabinet height (inches) x door weight (pounds, including twice the handle weight) = Power Factor

Example:
- Cabinet height: 15" (within possible range)
- Door weight including twice the handle weight = 9lb 14oz (14oz = 0.9 lbs)
- Power factor = 15 x 9.9 = 148.5
- A power factor of 148.5 requires lift mechanism 20K1501

AVENTOS HK-XS Brochure: Blum AVENTOS HK-XS
Sku: 20K1501
Vendor: Blum
$16.00
