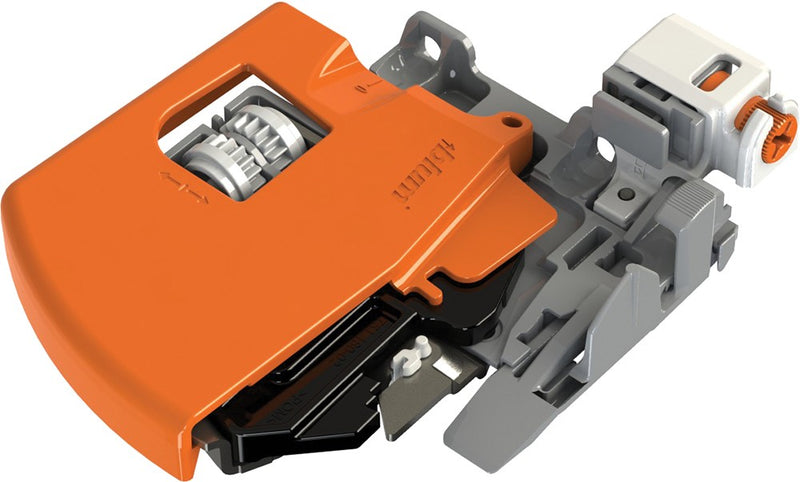

Blum Depth Adjustable (Inset) Locking Device with side shift for 563/569 Series - Right - T51.1901.PSR

Product Description

Blum Depth Adjustable (Inset) Locking Device with side shift for 563/569 Series Drawer Slides


One right and one left required per drawer

- Captive right device and self-aligning left device
- Self-adjusting drawer length tolerance
- Steel base with synthetic, spring-loaded release levers
- Minimum inside drawer width 6-11/16" (170mm)
- Height adjustment +1/8" (3mm)
- Side adjustment +/-1/16" (1.5mm)
- Depth adjustment +3/32" (2.5mm), preset at 0
- Minimum sub front thickness 1/2" (13mm)
- Designed for 1/2" (13mm) drawer bottom recess
- Integrated 1/8" (3mm) distance bumper for SERVO-DRIVE applications

Sold: Each
Installation screws 606N (#6 x 5/8") are included

Sku: T51.1901.PSR
Vendor: Blum
$3.80
Maximum quantity available reached.
