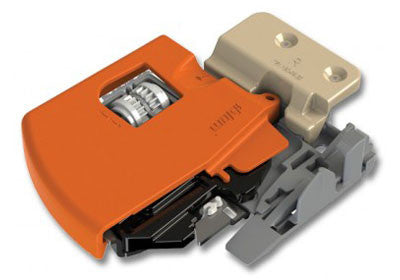

Blum Vertical Mount Locking Device with side shift for 563/569 Series - Right - T51.1901.20R

Product Description
Blum Vertical Mount Locking Device with side shift for 563/569 Series Drawer Slides

One right and one left required per drawer

- Vertical mount locking device used to minimize sub front splitting
- Captive right device and self-aligning left device
- Self-adjusting drawer length tolerance
- Steel base with synthetic, spring-loaded release levers
- Minimum inside drawer width 6-11/16" (170mm)
- Height adjustment +1/8" (3mm)
- Side adjustment +/-1/16" (1.5mm)
- Minimum sub front thickness 5/8" (16mm)
- Designed for 1/2" (13mm) drawer bottom recess

Sold: Each
Installation screws 606N (#6 x 5/8") are included

Note: These new locking devices will NOT work with the previous series Blum slides, they will only work with the new 563/569 series.
Sku: T51.1901.20R
Vendor: Blum
$1.80
